This command inserts a key-number and quantity
legend at workstations keyed alike. The beginning key number is randomly
selected (unless other Key-Alike legends are present) or can be manually
entered at the command line.This command inserts a key-number and quantity
legend at workstations keyed alike. The beginning key number is randomly
selected (unless other Key-Alike legends are present) or can be manually
entered at the command line.
If Station Id’s are present in the drawing,
Key-Alike will use them to Auto-Zoom to each workstation.

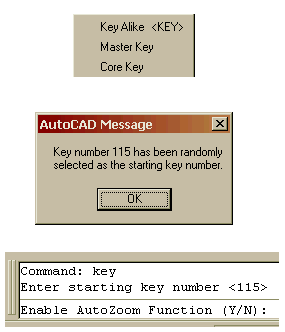

Select Key
Alike <KEY> from the Keys and Locks Fly-out of the Macro
Pull-down of any ECAD menu.
<ENTER> at the keyboard to accept default Key number, or enter a new Key number.
If Station Id’s are present, the command line prompts user to select an Auto-zoom Function. (Y) Yes, (N) No.
If (Y) Yes, ECAD Auto-zooms to the location of first Station ID. If (N) No, user must Pan to each area to be Keyed Alike.
Window select the storage components to be keyed alike. Left pick to place the Key-Alike legend. Continue window selecting components as ECAD Auto-zooms to each Station Id Location.
Right-click to exit the command.
