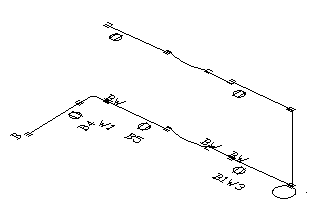

3D Electrical View

• Select 3D Electrical View from the Elec Pull-down of the Wireworks menu.

• The screen switches to 3D Dynamic view. Move the cursor up/down to control front/back tilt. Move the cursor side-to-side to control Z-Axis rotation. Left pick to freeze the current viewing angle or manually enter viewing angle at the command line.

• Use the keyboard to toggle to an alternate 3D view option or Right-click to exit the 3D Dynamic view.

• Select 2D Plan View from the View Pull-down of the current ECAD menu group to return to standard drawing UCS.
